High - Tensile Steel Flatbed Container Trailer With Water Proof Design

Star Trailer Co.,Ltd
Contact Now

High - Tensile Steel Flatbed Container Trailer With Water Proof Design

  • 1
  • 2
  • 3

Brand Name : Star Trailer

Model Number : SW-009

Certification : ISO/CCC

Place of Origin : Shandong China (Mainland)

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, D/A, T/T

Supply Ability : 300 units per month

Delivery Time : 40 days after receiving your payment

Max Payload : 60T

Size : 12550mm*2590mm*2702

Material : Steel

Brand name : Star Trailer

Axle brand : FUWA OR BPW

Contact Now

High - Tensile Steel Flatbed Container Trailer With Water Proof Design
Overview
Quick Details

Use:Truck Trailer                                    Type:Semi-Trailer                                Material:Steel

Certification:CCC/ISO                             Size:12400*2500*3650                      OEM No.:Optional

Max Payload:50T                                     Brand Name:StarTrailer                      Model Number:Shuyue

Axle:FUWA 13 tons                                  Brake:Wabco                                      Floor thickness:3mm
Supply Ability
Supply Ability:  300 Unit/Units per Month 2 or 3 units packaged together to reduce the shipment cost.
Packaging & Delivery

Packaging Details

Nude

Port:  China Port

Lead Time : Around 40 days after payment


Type Star trailer multi-function cargo box van semi trailer
Dimension
  Size 12500*2500*1550mm
Weight
  Payload 30,000kg
  Tare weight Approx. 1,100kg
  G.V.W.R Approx. 41,000kg
Frame&Structure
  Main beam Material Q345B,FabricatedHbeam height 500mm,Top flange thickness 14mm,Middle web thickness 8mm,Bottom flange thickness 16mm
  Side beam 16#channel steel
  Platform 3mm thick chequer plate with supporting channel
  Stand column Standard design with support to the frame body
  Roof Steel ,water proof design
  Cross beam 80*40mm square tube
  Kingpin JOST 2"SAE kingpin,bolted in type
  Welding standard All welding are to be done by qualified welder per applicable national standard
  Painting Shot blast at standard SA2.5 prior to application of primer,polyurethane top coat. Total DFT not less than 100um
Running gear
  Suspension  mechanical suspension,leaf spring 13mm×90mm,China
  Axle FUWA150×150square beam axle,3pcs*13ton capacity,China
  Brake system Dual line pneumatic brake,SAE hose and connector
  Brake chamber 4 units T30/30 spring brake chambers,2 units T30 brake chambers
  Air tank 40L,2pcs,China
  Emergency relay valve WABCO relay valve
  Tire Double coin brand,12R22.5.12pcs, China
  Rim 9.0*22.5 steel disc wheel,10 holes ISO,12pcs,China
  Landing gear Standard 28T two speed telescopic manual landing gear



High - Tensile Steel Flatbed Container Trailer With Water Proof DesignHigh - Tensile Steel Flatbed Container Trailer With Water Proof DesignHigh - Tensile Steel Flatbed Container Trailer With Water Proof Design



Company Information

As a leading Chinese vehicle exporter, we have many years professional experience in this field.

Besides the high quality of our vehicles, our international sales team will also provide you excellent logistics service and after-sales service.

We will always do our best to solve all the problems and put our customer's interests in the first place.



Need more information? Just contact us! Features:

1,Steel construction:All chassis adopts the high-tensile steel

 2,Running system:Axles and suspensions system are complied with International Standards;

3,Brake system:Adopt the International brands;

4,Electric system:China famous brands;

5,Painting:zinc-rich primer and modified urethane topcoat as customers' choices

6,Harness: We adopt the rubber Wiring harness. Its advantages include waterproof, dustproof, anti-aging, safety more,etc.Specially there are some high intension clamps to fix the harness.

7,The side beam is high tensile steel which strengthen more the Cargo platform.

8,Double air chambers are adopted on all axles in order to brake the trailers safety and quickly.

9,Lights include the rubber grommets in order to decrease the shaking and extend its using period. Specifications:



OUR ADVANTAGESFAQ

A. Which payment terms can we accept?

  • Normally we can work on T/T term or L/C term.
  • On T/T term, 30% down payment is required in advance, 70% balance shall be settled before delivery, or against the copy of original B/L for regular client.
  • On L/C term, normally need 30% down payment by T/T, 70% by L/C at sight. a 100% irrevocable L/C without “soft clauses” can be accepted sometimes. Please seek the advice from the individual sales manager whom you work with.

B. How long will our price be valid?

  • Price with long valid time -- We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remains stable through the year. We only adjust our price based on two situations: The rate of USD:RMB varies significantly according to the international currency exchange rates. Manufacturers/factories adjusted the trailer price, because of the increasing labor cost and raw material cost.

C. What logistics ways we can work for shipment?

  • We can ship all trailer by various transportation tools.
  • For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania etc, either by container or RoRo/Bulk Shipment.
  • For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can ship trucks by road or railway.
  • For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex.




Product Tags:

trailer with folding sides



dropside tipping trailer


Buy cheap High - Tensile Steel Flatbed Container Trailer With Water Proof Design product

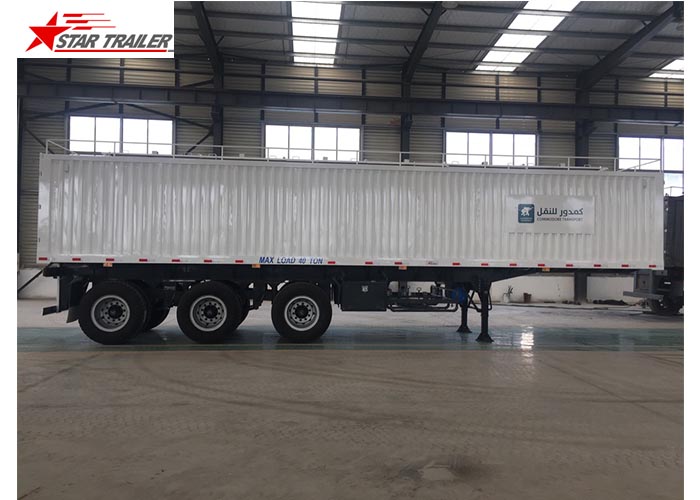

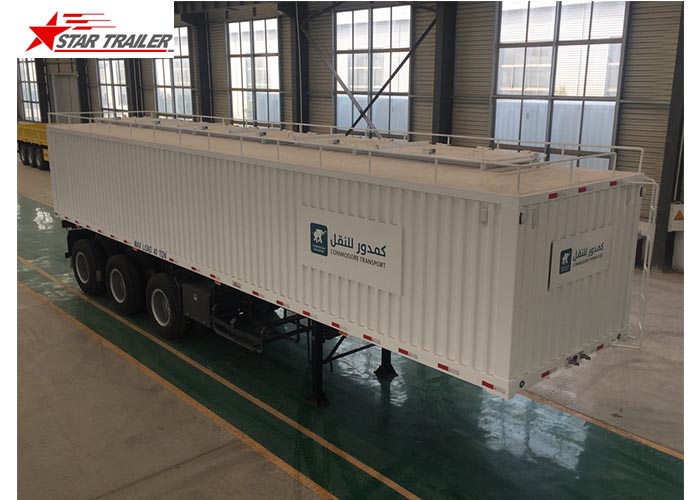

High - Tensile Steel Flatbed Container Trailer With Water Proof Design Images
