Purpose: Logistics between cities Type: Semi-Trailer, Truck Trailer
Material: CarbonSteel Certification: ISO CCC
Size: Buyer's Request Payload: 60ton
Place of Origin: Shandong, China Brand: Startrailer
Name: High Point Load Low Flatbed Semi Trailer With Mechanical Suspension
Landing Gear: JOST brand 2.0 inches(50mm) or 3.5 inches(90mm) bolts type or Welding type
Loading weight: 40ton to100ton Suspension: Leaf spring suspension or air suspension
Axle: FUWA brand/BPW brand Tire: 1100R20/12R22.5/315/80R22.5
Floor: 3mm/4mm/5mm diamond plate Ladder: Manual or Hydraulic type
Side Guard: According to customer's requirement
Product Capacity
Specifications:

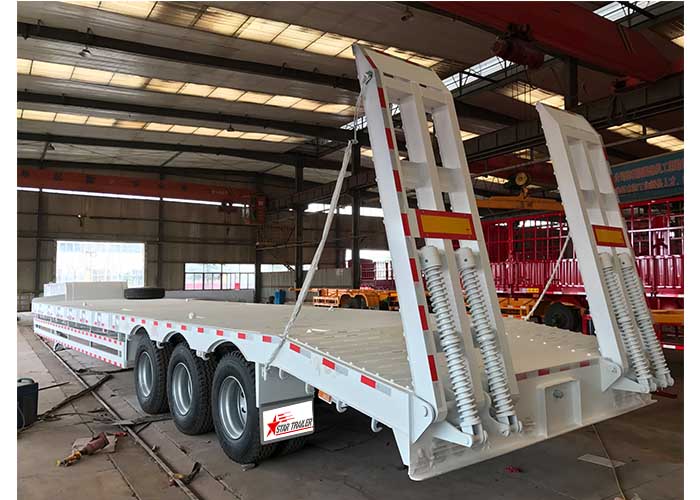

This is the 60ton low bed trailer we just finished for our Madagascar client.
This trailer’s chassis adopts high-grade steel with 350Mpa yield strength. The main beams are welded automatically by the welding robots. We have upgraded the mainframe design, which allows the trailer to carry more loads. The mainframe will also last longer. Compared to other Chinese factories, we are proud to offer a 5-year warranty on the mainframe.
We use three axle design; the length of the trailer is 12.5 meters. The loading capacity of the trailer is 60 tons. We put side extension on both sides of the trailer to increase the loading platform size for the oversized cargos. The brand of the axle is Fuwa axle, and it’s a trendy Chinese brand known for its excellent quality. The landing gear is from Jost. We also use special reinforced heavy-duty hydraulic ramps for this trailer, and they can be used to safely load and unload weighty steel tracked machines for up to 2 years. Two small landing gears are installed in the rear end to ensure the stability of the ramps. The trailer platform is made of 4mm steel chequer plate. Twenty pieces of Rope hooks are welded on both sides of the trailer, which can be used with ropes to stabilise the cargo onboard.
Star Trailer is the 1st manufacturer in China that produces premium European standard semi-trailers designed and developed by our highly qualified teams of experts led by our Australian chief engineer with 42 years of experiences in designing semi-trailers.
Product Pictures :
Production process:
Manufacturing accessories:
Lowbed semi-trailers are commonly used for transporting construction machineries such as bulldozers, excavators and overweight equipment such as transformer, generator, etc
Workshop:
Specifications low bed semi trailer
| | 11000mm-16000mm x 3000-3500mm x 1650 mm (Standard or Customized ) |
| | |
| | 13T/16T, BPW/FUWA/ |
| | 6.5-20 / 7.5-20 / 8.00-20 / 8.5-20 |
| | 8.25R20 / 10.00R20 /11.00R20 / 12.00R20 |
| | Tri-axle Mechanical suspension or Air Suspension |
| | 50# (2 inches), or 90# (3.5 inches), 1 Piece, Jost brand |
| | Capacity 28 ton, Static load 60 ton, two speed, One side operation |
| | Height:450mm-580mm Q354B |
| | 16mm-30mm "I" Steel |
| | Manually operated or Hydraulic type | | |
| Coat | Sandblasted, anti-rust chassis surface is available with one layer of anticorrosive primer and two layers of top coats. |
| | The specification just for your reference, we can build trailer as your specific requirements |
Production packaging:
Our Customers:
Our advantages:
1.High-grade steel for semi-trailer
The steel we use is high-grade steel; it contains niobium and 0.98‰ of titanium, which keeps the chassis very strong with excellent torsional stiffness and low dead weight. The main beams are the strongest in the market, allowing for more load capacity. We are proud to offer every customer 5-year warranty on the mainframe.
2.Designed for optimal load distribution
Our trailer is designed for optimal load distribution. Instead of two web reinforcement structure design, which is commonly used by other Chinese factories, we adopt the structure of width plate and stiffened plate reinforcement. As a result, our trailer has excellent torsional stiffness and is exceptionally stable when loaded.
3.Weld quality
To ensure the weld quality in the critical parts of the trailer, we have introduced advanced welding
the machine in our production line, including submerged arc welding machine, welding robots, and kingpin
welding machine, etc.
Our Services
PRE-SALES SERVICES
We will have an in-depth conversation first when you reach out to us; this allows you to clarify your goals and vision. We will then determine how we can best accommodate your needs and send you specs, drawings and quotation to get your feedback. After everything is confirmed, we will move on to the final production.
We are providing professional technical solutions withdrawing.
Communicating with customers, analyse their needs.
Offering customer quote in EXW, FOB, CFR, DAF or CIF
FAQ
1. How about the quality of your products? Can I trust you?
We have sixteen years of production experience. Guarantee Quality and Delivery! Since our establishment, we have considered "products quality first" as our principle.
2. How do you transport semi-trailers?
We transport the semi-trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
3. What are your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
4. How about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time
depends on the items and the quantity of your order.
