Stable Loading Heavy Duty Semi Trailers Leaf Spring Suspension With Anti - Slip Strip

Name: Stable Loading Heavy Duty Semi Trailers Leaf Spring Suspension With Anti Slip Strip
Brand: Startrailer
Price: 19 USD

Brand Name : Startrailer

Model Number : LB1-003

Certification : CCC、ISO

Place of Origin : Shandong Province, China

MOQ : 2 units

Price : USD19,000~USD35,000

Payment Terms : T/T,

Supply Ability : 100 Units per month

Delivery Time : 40 days after down payment received

Packaging Details : 2 units/package transported by break-bulk-vessel or roll-on-roll-off-vessel

Size : Buy's request

Max Payload : 60T

Landing Gear : Capacity 28 ton, Static load 60 ton, 2 speed, Oneside operation

Type : Semi-Trailer

Purpose : Logistics between citys

Material : Carbon Steel

Contact Now

Stable Loading Heavy Duty Semi Trailers Leaf Spring Suspension With Anti - Slip Strip

Click this link to talk to us:
https://api.whatsapp.com/send?phone=8613864856071

Overview

Quick Details

Purpose: Logistics between cities Type: Semi-Trailer, Truck Trailer

Certification: ISO CCC Size: Buyer's Request

Max Payload:60ton Place of Origin: Shandong Province, China

Brand: Star Trailer Material: Carbon Steel

Landing Gear: JOST E100 Loading weight::40ton to100ton

Suspension: Leaf spring suspension or airbag suspension

Axle:: FUWA brand/BPW brand Tire::1100R20/12R22.5/315/80R22.5

Floor:3mm/4mm/5mm diamond plate Ladder: Manual or Hydraulic type

Side Guard: According to customer's requirement

Product Capacity

30 units per Month

Specifications low bed semi trailer

Dimension	11000mm-16000mm x 3000-3500mm x 1650 mm (Standard or Customized )
Loading Capacity	60-120 Tons
Axle	13T/16T, BPW/FUWA
Rim	6.5-20 / 7.5-20 / 8.00-20 / 8.5-20
Tire	8.25R20 / 10.00R20 /11.00R20 / 12.00R20
Suspension	Tri-axle Mechanical suspension or Air Suspension
Kingpin	JOST brand 2.0 or 3.5 inches (bolted or welded type)
Landing Gear	Capacity 28 ton, Static load 60 ton, two speed, One side operation
Main Beam	Height:450mm-580mm Q354B steel
Side Beam	16mm-30mm "I" Steel
Ladder	Manually operated or Hydraulic type
Surface Coating	Sandblasted, anti-rust chassis surface is available with one layer of anticorrosive primer and two layers of top coats.
Remark	The specification just for your reference, we can build trailer as your specific requirements

Stable Loading Heavy Duty Semi Trailers Leaf Spring Suspension With Anti - Slip Strip

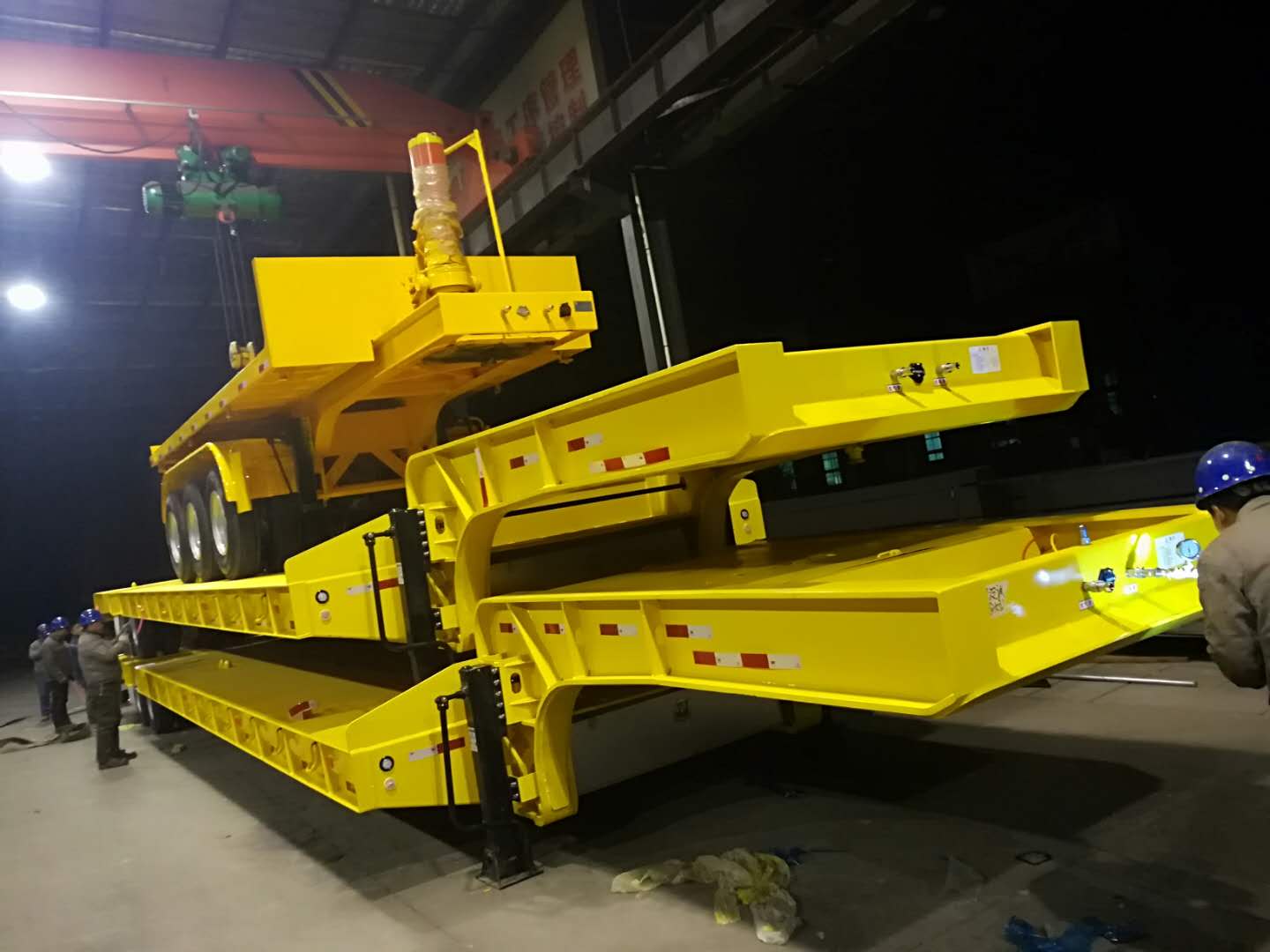

Production process:

Stable Loading Heavy Duty Semi Trailers Leaf Spring Suspension With Anti - Slip Strip

Manufacturing accessories:

Lowbed semi-trailers are commonly used for transporting construction machineries such as bulldozers, excavators and overweight equipment such as transformer, generator, etc.

Stable Loading Heavy Duty Semi Trailers Leaf Spring Suspension With Anti - Slip Strip

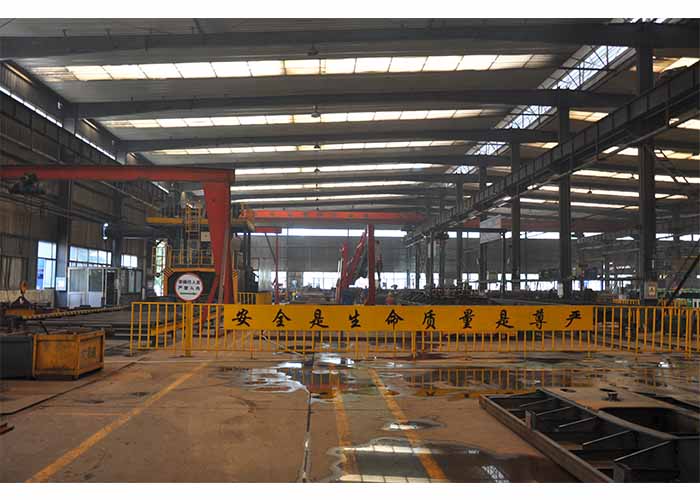

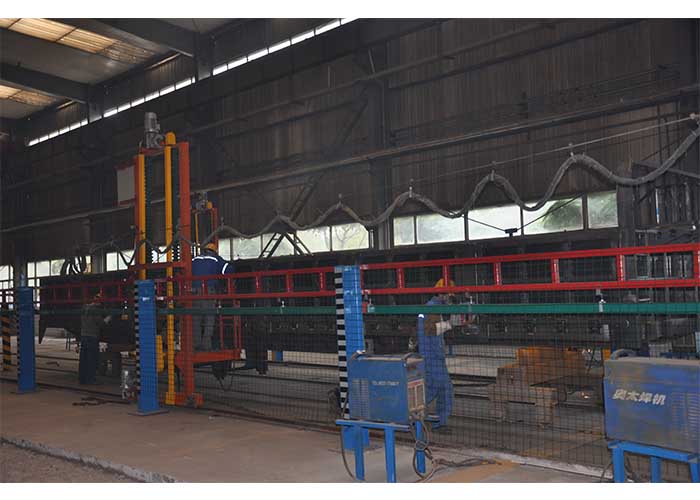

Workshop:

Production packaging:

Stable Loading Heavy Duty Semi Trailers Leaf Spring Suspension With Anti - Slip Strip

Our Customers:

Our advantages:

1.High-grade steel for semi-trailer

The steel we use is high-grade steel, and it contains niobium and 0.98‰ of titanium, which keeps the chassis very strong with high torsional stiffness and low dead weight. The main beams are the strongest in the Market, allowing for more load capacity. We are proud to offer every customer 5-year warranty on the mainframe.

2.Designed for optimal load distribution

Our trailer is designed for optimal load distribution. Instead of two web reinforcement structure design, which is commonly used by other Chinese factories, we adopt the structure of width plate and stiffened plate reinforcement. As a result, our trailer has excellent torsional stiffness and is exceptionally stable when loaded.

3.Weld quality

To ensure the weld quality in the critical parts of the trailer, we have introduced advanced welding

the machine in our production line, including submerged arc welding machine, welding robots, and kingpin welding machine, etc.

Our Services

PRE-SALES SERVICES
We will have an in-depth conversation first when you reach out to us; this allows you to clarify your goals and vision. We will then determine how we can best accommodate your needs and send you specs, drawings and quotation to get your feedback. After everything is confirmed, we will move on to the final production.
We are providing professional technical solutions withdrawing.
Communicating with customers, analyse their needs.
Offering customer quote in EXW, FOB, CFR, DAF or CIF

FAQ

1. How about the quality of your products? Can I trust you?

We have sixteen years of production experience. Guarantee Quality and Delivery! Since our establishment, we have considered "products quality first" as our principle.

2. How do you transport semi-trailers?

We transport the semi-trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.

3. What are your terms of payment?

T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

4. How about your delivery time?

Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time

depends on the items and the quantity of your order.

Click this link to talk to us:
https://api.whatsapp.com/send?phone=8613864856071
