Quick Details
Purpose: Logistics between cities Type: Semi-Trailer
Material: Q345B Certification: CCC
Size: Buy's request Brand: Star Trailer Max Payload:30-60T
Place of Origin: Shandong, China (Mainland)
Function: Transport 20/40ft container and Heavy Duty Equipment
Axle:13T 14T 16T 18T BPW FUWA
Suspension: Mechanical Suspension/Air suspension
Landing Gear: JOST C200 two speed telescopic manual landing gear
Tire:11r20 12r22.5 315 385
Kingpin:2"(50mm)or3.5"(90mm) JOST Color:Customers Optional
Production time:20 workdays
Packaging & Delivery
Packaging Details
Two units/package transported by break-bulk-vessel or roll-on-roll-off-vessel
Product Introduction:

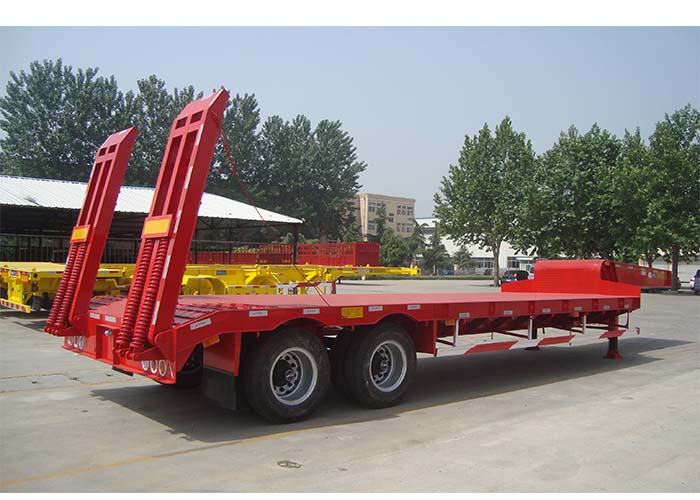

Low bed semi-trailer
The low bed semi-trailer is mainly used for transport of goods, not spin, such as tractors, loaders, excavators, bulldozers, etc., applied to many industries, for large cargo transportation is very convenient. With loading 30-200tons low bed semi-trailer can be provided based on client requirements.
More characters of intense low bed trailer you will concern :
1>Strong trailer frame was made from Q345B/Q550/Q690/HG60. The advantages of Q550/Q690/HG60 are high strength, strong bearing capacity and 2-3 times of other materials.
2>All cross beams are thoroughly reinforced
3>Heavy duty type suspension: Mechanical, airbag, and rigid suspension to meet your transportation demand.

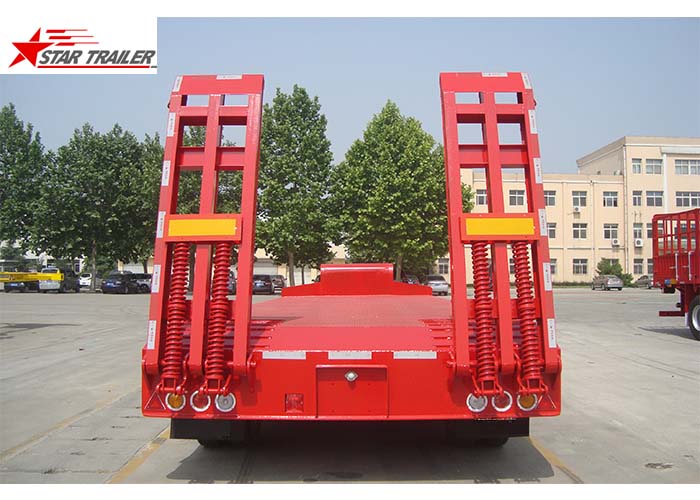

4>Strong low bed trailer ramp, leaf spring type, folding hydraulic type optional.
5> Two pieces of spare tire carriers, water tank, fuel tank, etc., are optional accessories which build modern transportation.
Product Description
| Terms & Conditions: |
| Delivery: | 40 days after down payment received |
| Payment: | Down payment 30% by T/T within five days after order confirmation Balance 70% by T/T before EXW. |
| Warranty: | 12 Months |
| Specification: | |
| Type: | Two axles Low bed Semi Trailer |
| Dimension: | |
| | Length: | 12,200mm |
| | Width: | 3,000mm |
| | Height: | 1,150mm |
| | Kingpin: | 50# (2 inches), or 90# (3.5 inches), 1 Piece, Jost brand |
| | Axle spacer: | 8,310mm+1,310mm |
| | Landing gear location | 2,545mm behind the kingpin location |
| (The above dimension will be adjusted according to the tractor specification.) |
| Weight: | |
| | Payload: | 40,000kg |
| | Tare weight: | Approx. 10,000kg |
| | G.V.W.R.: | Approx. 50,000kg |
| | | |
| Frame & Structure: | |
| | Main beam: | Material Q345B. Fabricated “H” beam height 500mm, Top flange thickness 18mm, Web thickness 10mm, Bottom flange thickness 20mm |
| | Side beam: | 20# channel steel |
| | Platform: | 4mm thick chequer plate with supporting channel |
| | Crossbeam: | 14# channel steel |
| | Kingpin: | JOST 2” SAE Kingpin, bolted in type |
| | Rear ladder: | 2 pcs spring steel ladder |
| | Welding standard: | All welding is to be done by qualified welder per applicable national standard |
| | Painting: | Shot blast at Standard SA 2.5 before application of primer, polyurethane top coat. Total DFT not less than 100um |
| | | |
| Running gear: | |
| | Suspension: | JMCG mechanical suspension, leaf spring 13mmx90mm, China |
| | Axle: | FUWA 150x150 square beam axle, 2pcs*13 ton capacity, China |
| | Brake system: | Dual line pneumatic brake, SAE hose and connector |
| | Brake chamber: | Four units T30/30 spring brake chambers, two groups T30 brake chambers |
| | Air tank: | 40L, one pc, China |
| | Emergency relay valve: | Wabco relay valve |
| | Tire: | Double coin brand, 825R20, 8 pcs. China |
| | Rim: | 6.5-20 steel disc wheel, ten holes ISO, 8 pcs. China |
| | Landing gear: | JOST C200 two speed telescopic manual landing gear |
| | | |
| Electrical System: | |
| | Voltage: | 24 Volt |
| | Receptacle: | Seven-way socket SAE standard, China |
| | Front marker lamp: | White |
| | Side marker lamp: | White & Red |
| | Rear lamp: | Red |
| | Turn signal lamp: | Amber |
| | Reflector: | Per customer requirement |
| | Wiring: | Electric cable protected by PVC conduit on the mainframe |
| | | |
| Accessories: | |
| | Mudguard: | Steel mudguard |
| | Spare wheel carriers: | 1 set |
| | Toolbox: | 1 set |
Our customers
Accessories:
FAQ:
1. Can I have a sample of this type of trailer to test the quality?
Of course yes, my friend and our MOQ is 1 unit.
2. What's the delivery time and can you lower the price?
It depends on the quantity. Usually, it is within 40 days after the receipt of deposit. And my friend, the more units, the lower price...
3. Can I customise the trailer?
Yes, the design will be made according to your suggestion.
4. What's the payment terms?
30% by T/T as deposit and balance by T/T before delivery., or by L/C at sight.
5. How do you ensure its quality?
There will be a warranty given to you to provide you with good after-sade-support.
